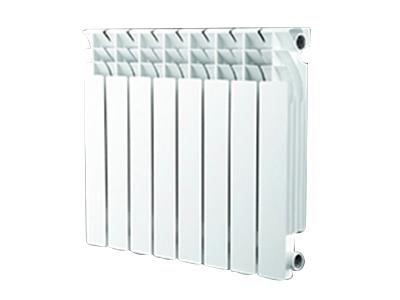

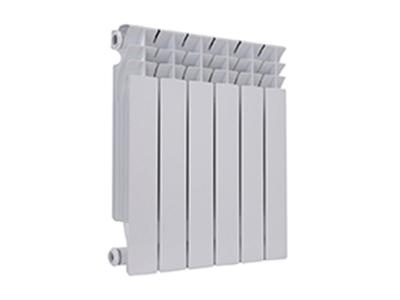

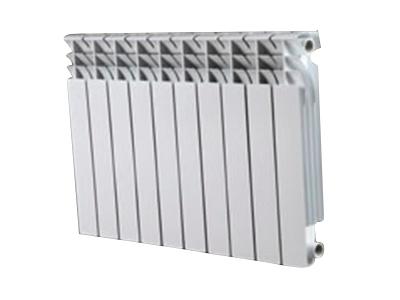

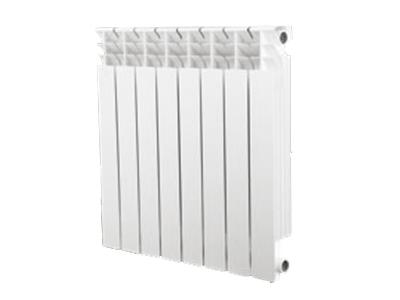

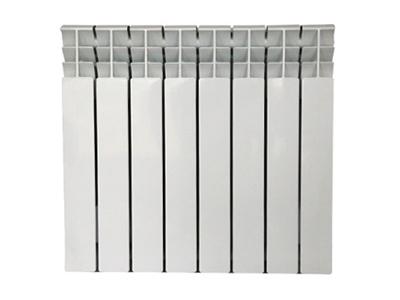

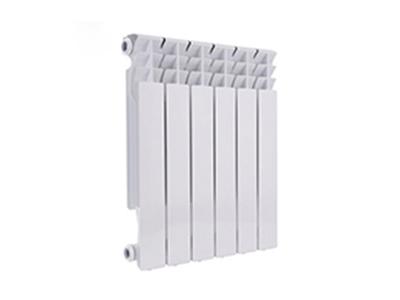

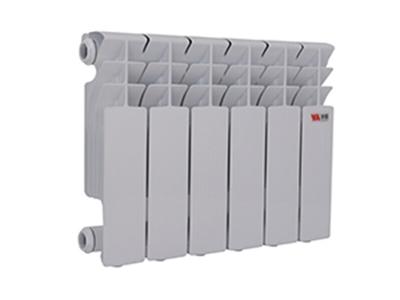

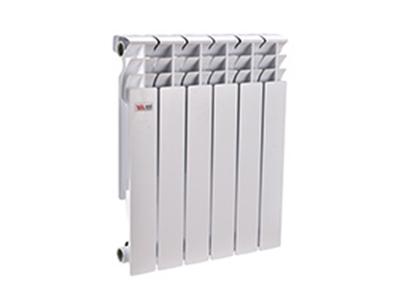

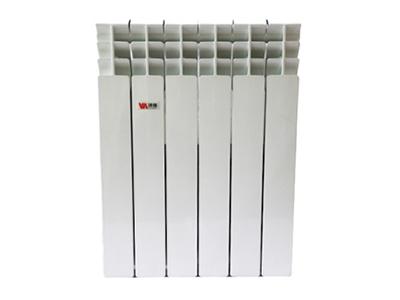

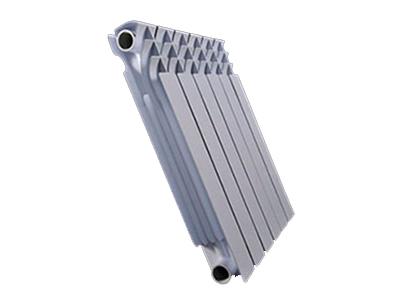

Die Casting Aluminum Radiator
- The die casting aluminum radiator is made of world famous brand material: ADC12 aluminum, which is corrosion resistant and specially used for casting and molding.
- As our aluminum radiator is stylish, antirust, light and leak-free, it is very popular with customers worldwide.
- The die casting aluminum radiator, aluminum heater, electric heater and heat exchanger consist of Al2O3 and SiO2 protective layers which are anti-wear, antirust, and anti-corrosion.
- Aluminum heater is at the point of 730 ℃ liquid aluminum, die cast by 800T-1600T automatic die casting machine, unique TY3318 anticorrosion coating process to ensure safe operation under water quality of PH≤12.
- Sealed by welding technology.
- Electrostatic spray painting by epoxy resin powder for great smoothness.
Mouid: YM-B200
Dimension (H*W*T) (mm): 270*80*85
Central Distance (mm): 200
Thermal Output (w) △T=64.5℃: 73
Working Pressure (Mpa): 0.8-1.6
Testing Pressure(Mpa): 2
Volume in 40'HQ pcs: 30000
Mouid: YM-B300
Dimension (H*W*T) (mm): 375*80*85
Central Distance (mm): 300
Thermal Output (w) △T=64.5℃: 140
Working Pressure (Mpa): 0.8-1.6
Testing Pressure(Mpa): 2
Volume in 40'HQ pcs: 28000
Mouid: YM-B350
Dimension (H*W*T) (mm): 427*80*85
Central Distance (mm): 350
Thermal Output (w) △T=64.5℃: 168
Working Pressure (Mpa): 0.8-1.6
Testing Pressure(Mpa): 2
Volume in 40'HQ pcs: 26000
Mouid: YM-K500
Dimension (H*W*T) (mm): 575*70*75
Central Distance (mm): 500
Thermal Output (w) △T=64.5℃: 139
Working Pressure (Mpa): 0.8-1.6
Testing Pressure(Mpa): 2
Volume in 40'HQ pcs: 19000
Mouid: YM-K500B
Dimension (H*W*T) (mm): 575*70*70
Central Distance (mm): 500
Thermal Output (w) △T=64.5℃: 120
Working Pressure (Mpa): 0.8-1.6
Testing Pressure(Mpa): 2
Volume in 40'HQ pcs: 21000
Mouid: YM-K500C
Dimension (H*W*T) (mm): 575*60*60
Central Distance (mm): 500
Thermal Output (w) △T=64.5℃: 110
Working Pressure (Mpa): 0.8-1.6
Testing Pressure(Mpa): 2
Volume in 40'HQ pcs: 30000
Mouid: YM-J500
Dimension (H*W*T) (mm): 575*80*80
Central Distance (mm): 500
Thermal Output (w) △T=64.5℃: 169
Working Pressure (Mpa): 0.8-1.6
Testing Pressure(Mpa): 2
Volume in 40'HQ pcs: 16500
Mouid: YM-J500B
Dimension (H*W*T) (mm): 575*78*80
Central Distance (mm): 500
Thermal Output (w) △T=64.5℃: 159
Working Pressure (Mpa): 0.8-1.6
Testing Pressure(Mpa): 2
Volume in 40'HQ pcs: 16700
Mouid: YM-J500C
Dimension (H*W*T) (mm): 575*77*80
Central Distance (mm): 500
Thermal Output (w) △T=64.5℃: 140
Working Pressure (Mpa): 0.8-1.6
Testing Pressure(Mpa): 2
Volume in 40'HQ pcs: 18000
Mouid: YM-B500
Dimension (H*W*T) (mm): 582*80*85
Central Distance (mm): 500
Thermal Output (w) △T=64.5℃: 175
Working Pressure (Mpa): 0.8-1.6
Testing Pressure(Mpa): 2
Volume in 40'HQ pcs: 14500
Mouid: YM-C500A
Dimension (H*W*T) (mm): 582*80*96
Central Distance (mm): 500
Thermal Output (w) △T=64.5℃: 189
Working Pressure (Mpa): 0.8-1.6
Testing Pressure(Mpa): 2
Volume in 40'HQ pcs: 13800
Mouid: YM-C500B
Dimension (H*W*T) (mm): 582*80*96
Central Distance (mm): 500
Thermal Output (w) △T=64.5℃: 186
Working Pressure (Mpa): 0.8-1.6
Testing Pressure(Mpa): 2
Volume in 40'HQ pcs: 13800
Mouid: YM-C500C
Dimension (H*W*T) (mm): 580*77*96
Central Distance (mm): 500
Thermal Output (w) △T=64.5℃: 148
Working Pressure (Mpa): 0.8-1.6
Testing Pressure(Mpa): 2
Volume in 40'HQ pcs: 14500
Mouid: YM-C500D
Dimension (H*W*T) (mm): 582*80*96
Central Distance (mm): 500
Thermal Output (w) △T=64.5℃: 180
Working Pressure (Mpa): 0.8-1.6
Testing Pressure(Mpa): 2
Volume in 40'HQ pcs: 13800
Mouid: YM-C450B
Dimension (H*W*T) (mm): 533*80*96
Central Distance (mm): 450
Thermal Output (w) △T=64.5℃: 146
Working Pressure (Mpa): 0.8-1.6
Testing Pressure(Mpa): 2
Volume in 40'HQ pcs: 15800
Mouid: YM-B600
Dimension (H*W*T) (mm): 682*80*90
Central Distance (mm): 600
Thermal Output (w) △T=64.5℃: 220
Working Pressure (Mpa): 0.8-1.6
Testing Pressure(Mpa): 2
Volume in 40'HQ pcs: 12500
Mouid: YM-J350
Dimension (H*W*T) (mm): 420*78*80
Central Distance (mm): 350
Thermal Output (w) △T=64.5℃: 100
Working Pressure (Mpa): 0.8-1.6
Testing Pressure(Mpa): 2
Volume in 40'HQ pcs: 20000
Mouid: YM-C500F
Dimension (H*W*T) (mm): 575*78*96
Central Distance (mm): 500
Thermal Output (w) △T=64.5℃: 148
Working Pressure (Mpa): 0.8-1.6
Testing Pressure(Mpa): 2
Volume in 40'HQ pcs: 14600
Mouid: YM-J500E
Dimension (H*W*T) (mm): 578*78*78
Central Distance (mm): 500
Thermal Output (w) △T=64.5℃: 145
Working Pressure (Mpa): 0.8-1.6
Testing Pressure(Mpa): 1.6
Volume in 40'HQ pcs: 17600
Mouid: YM-C500G
Dimension (H*W*T) (mm): 575*78*96
Central Distance (mm): 500
Thermal Output (w) △T=64.5℃: 145
Working Pressure (Mpa): 1.8-2.0
Testing Pressure(Mpa): 1.6
Volume in 40'HQ pcs: 14600
YOUMAY, a Chinese domestic radiator manufacturer and supplier, specializes in die casting aluminium radiator, bimetal radiator, heater, and more. Through our about 30 years of experience and continued efforts, our radiators are reliable, economical, and are CE, ROHS certified. As a result, they are well received by customers in Russia, Eastern Europe, Spain, Greece, Iran, and other countries.
Whenever you have a need for YOUMAY heater, please don't hesitate to contact us!
- Above the data in accordance to EN442 △t=64.5℃
- The price based on OEM includes the standard accessories
- We can assemble the radiator according to your request
- Quality Control Standard Sytem: ISO 9001:2000 and CE& EN442
- The standard color is RAL9016
- Standard package: 1set/CTNS. Every radiator is protected with retractile plastic and Packed in carton box

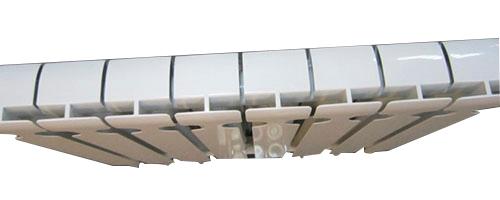

Sideview

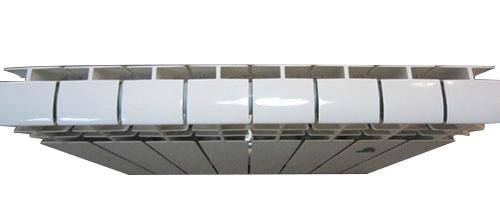

Backview

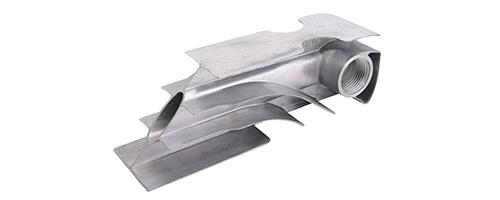

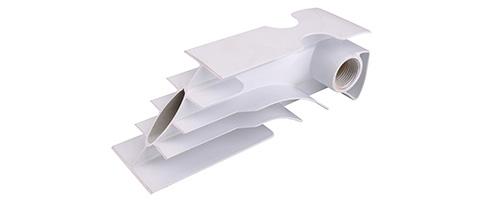

- We use the raw material of ADC12, the international brand which is special to use for airplane.
- The 730℃ liquid aluminum,die casted by 800T-1600Tdie casting machine in one step.
